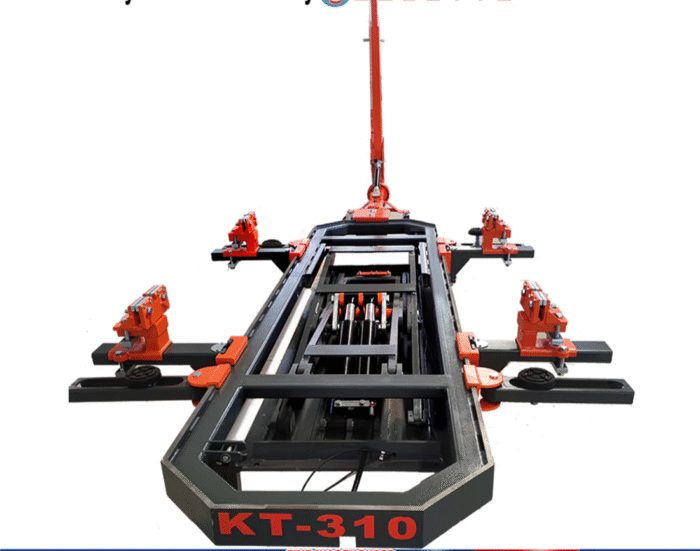

The KT310 Auto Body Frame Machine by kaTool is a professional-grade tool designed for auto body repair. Its precision engineering and sturdy construction ensure accurate and efficient repair work. With its advanced features, this machine offers a wide range of benefits, making it the top choice for industry experts.
Key Features:
- KT-310 – the small bench welded made of cold high alloy rectangular tubes is designed professionally for body collision quick repair. It’s built with upgraded materials, improved welding technique, and enhanced stress intensity to make the repairing work more precise and faster. In accordance with European advanced technology, the frame machine is simple, practical, safe and precise for fast repairs.
- CE certified
- 110mm drive on height
- Flexible moving tower, quick fixing, and wide working area, durable pulling power with 60KN.
- 9-grade locking system to reach different heights.
- Special design for jaws: quick fixed clamp jaws with only two screws

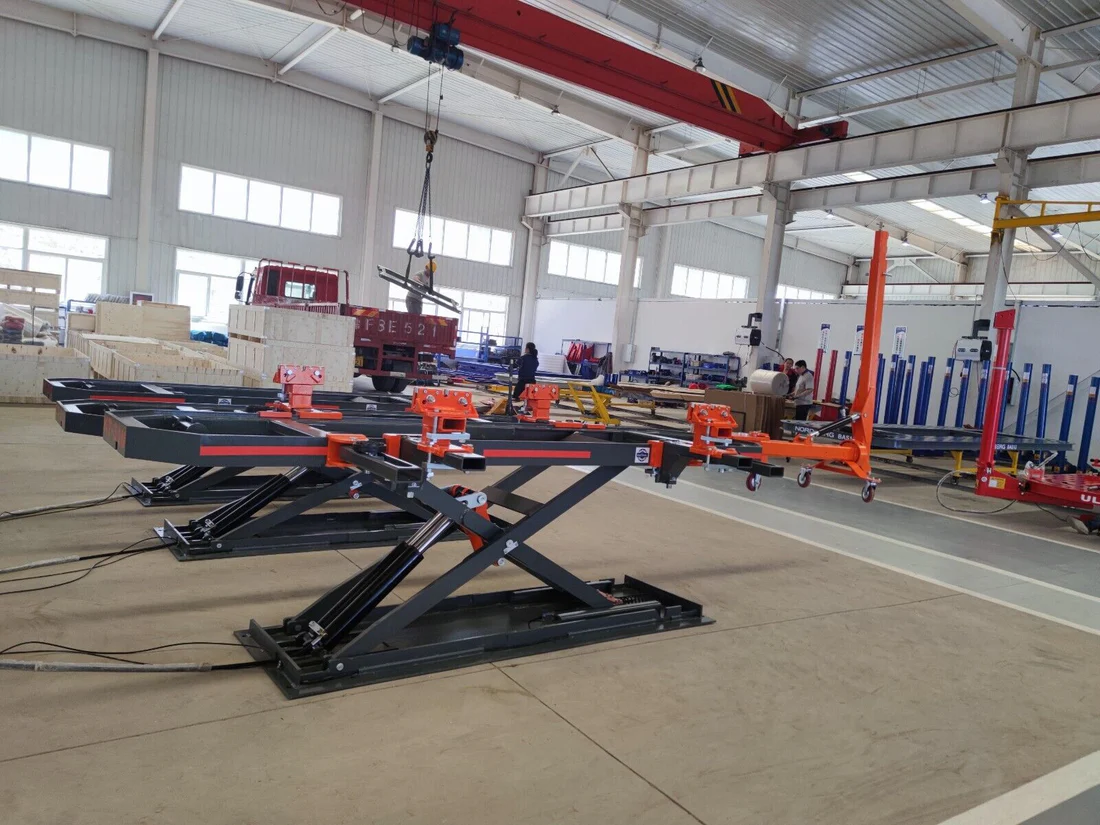

- Four adjustable lifting arms can rotate 180 degrees when the bench is used as a scissor lift, which is designed to lift nearly all kinds of vehicles.
- Equipped with bench supporter to find the exact height to install the pulling towers.
- Adjustable heavy-duty main clamps are easy to install and remove.
-
Fast repair for small and medium vehicles. The model helps save valuable space in shops and is low-cost.
Specifications:
| Frame Length | 130.8 Inch |
| Frame Width | 34.5 Inch |
| Frame Height | 4.3 to 67 Inch |
| Max Push Power for Pulling Tower | 60KN |
| Rated Voltage | 220V |
| Working Range of Pulling Tower | 360 Degrees |
| Max Load Bearing | 7000 lbs (CE Certified) |
