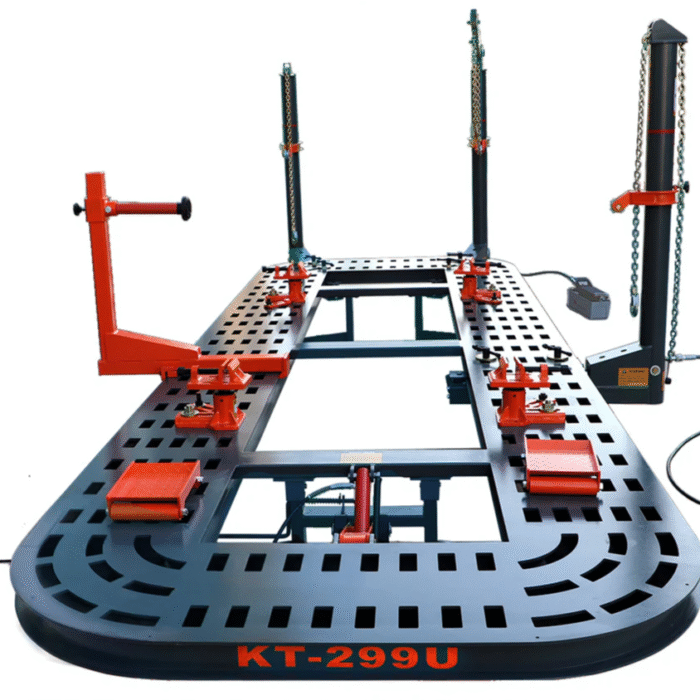

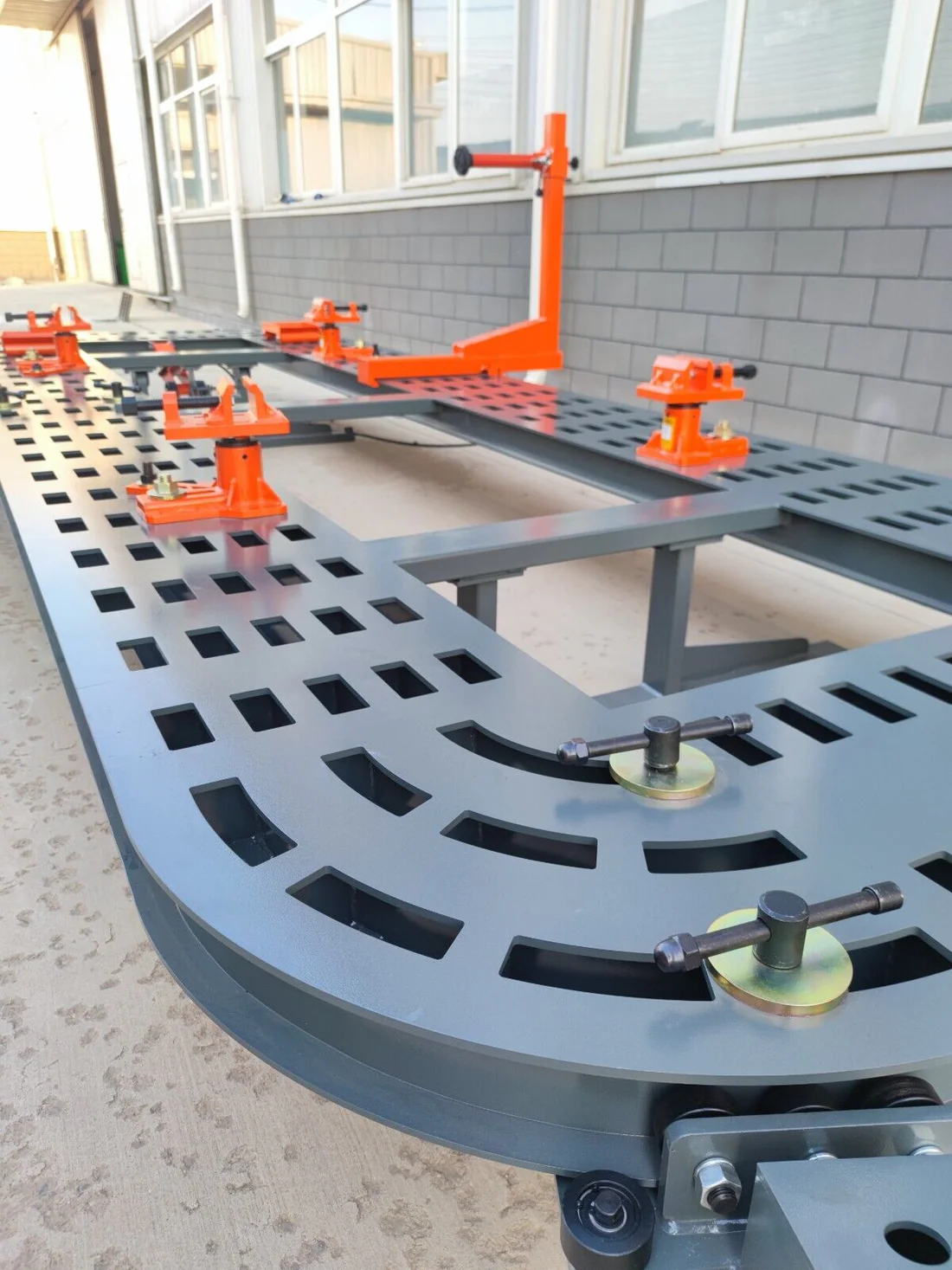

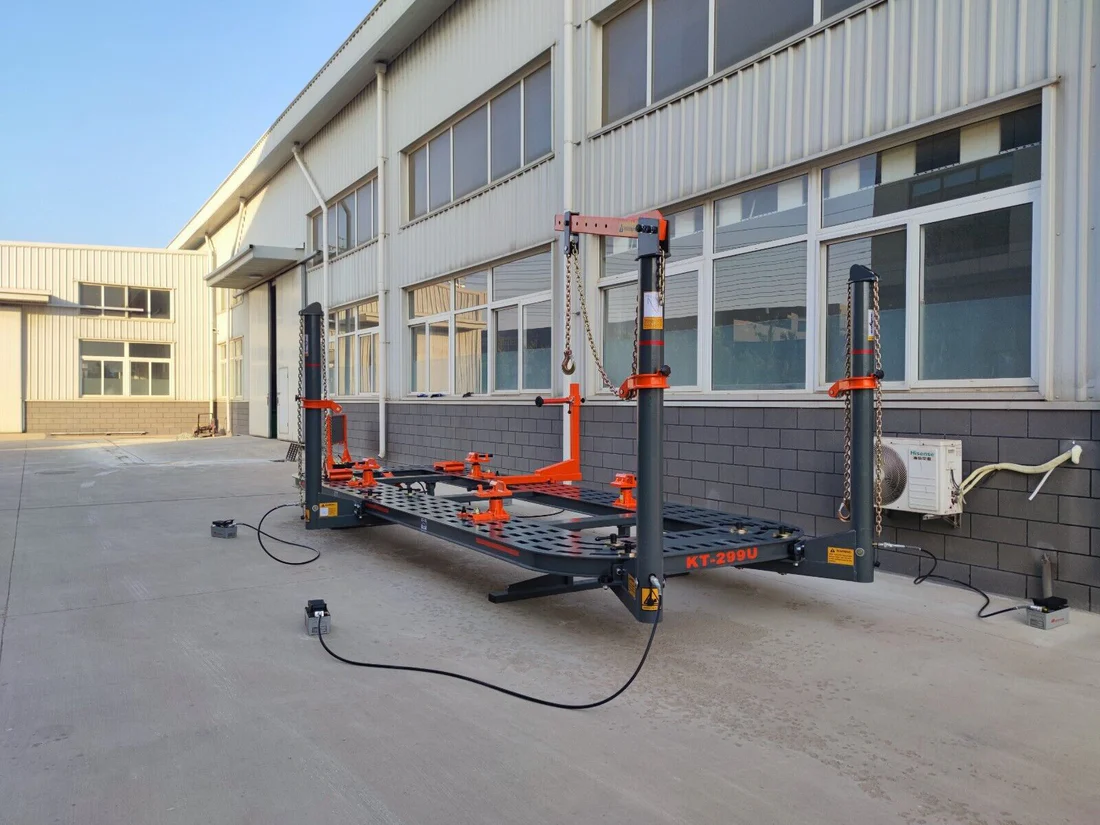

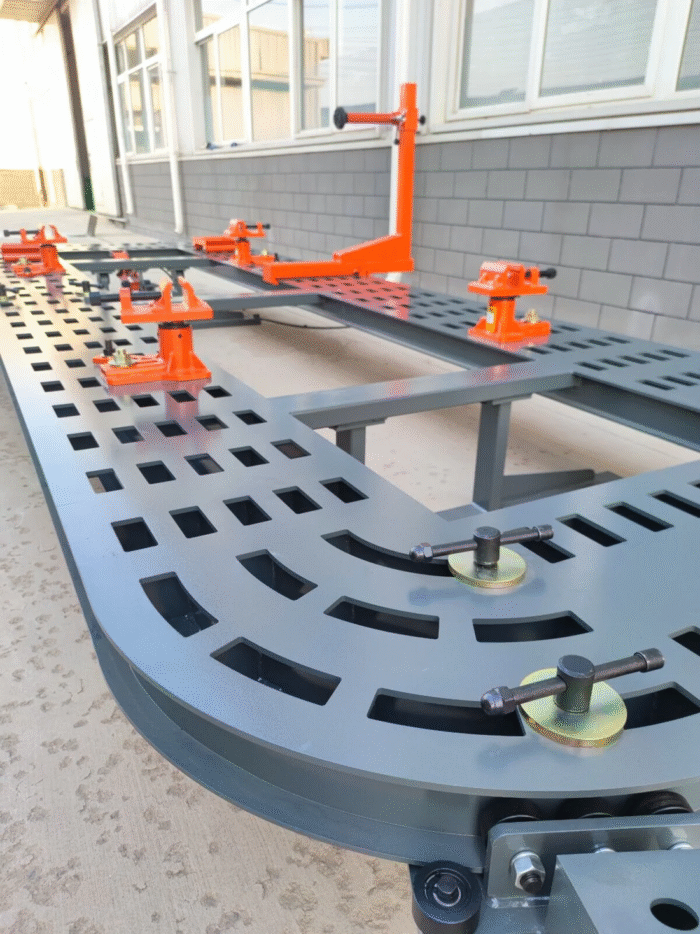

KT299 Auto Body Frame Machine By kaTool is a reliable and efficient piece of equipment for auto body repairs. Designed with precision and expertise, it offers maximum durability and ease of use. With its advanced functions and user-friendly interface, it guarantees quality results and improved productivity for any auto repair shop.
Key Features:
- Pulling tower With 10 tons pulling capacity
- Positioning slot to position without dead spot
- Pneumatic pump with high-pressure
- High-quality manganese steel, CNC plasma cutting, CO2 welding(Panasonic), shot blasting and power coating
- Tilt hydraulic lifting platform
- Towers made of 10mm seamless steel pipe can be rotated 360 degrees along the platform
- Unique design of spiral movements for main clamps
- All accessories and tools had gone through multi-heating and forging processes.
Specifications:
| Length | 256.1 Inch |
| Width | 86.68 Inch |
| Height | 4.3 to 67 Inch |
| Pulling Capacity | 100 KN |
| Rated Voltage | 220V |
| Radius of Pulling | 360 Degrees |
| Air Supply Required | 0.8 MPA |
| Max Loading Capacity | 7700 lbs (CE Certified) |
