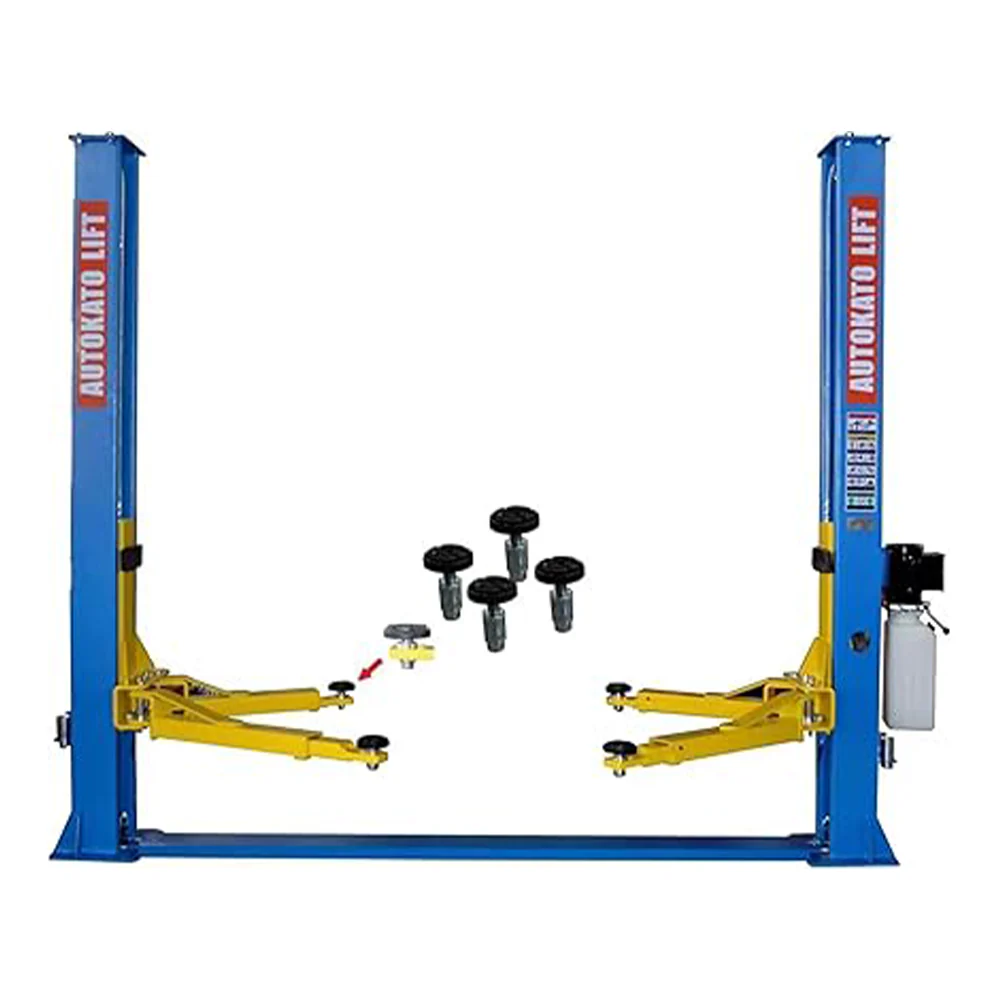

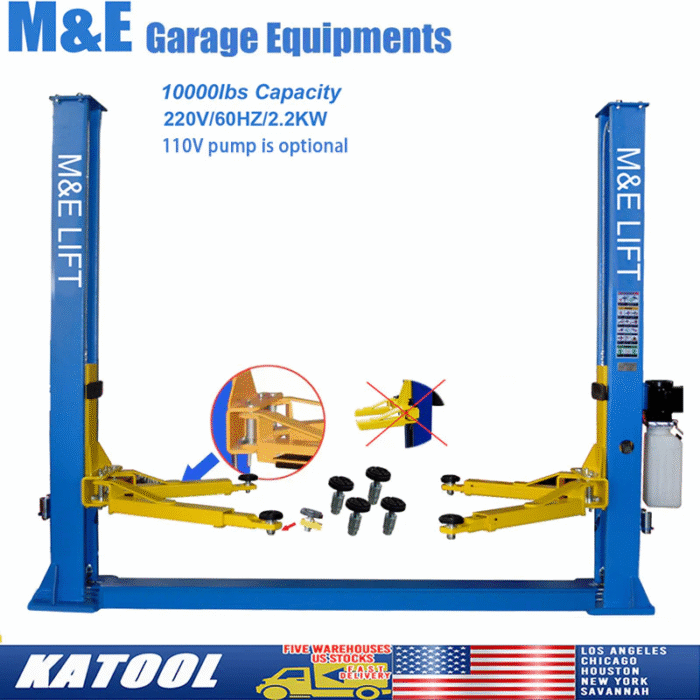

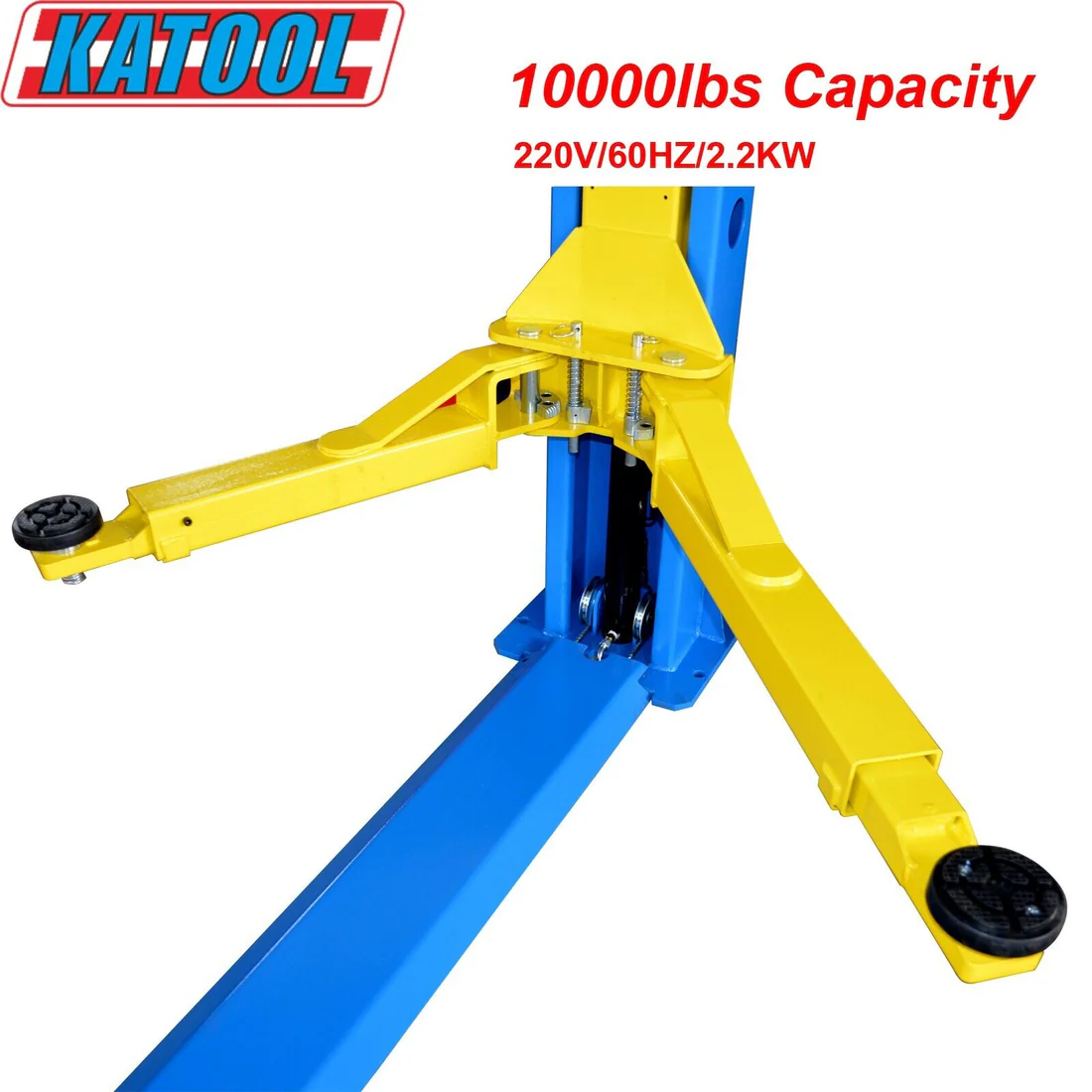

The H105 Two Post Vehicle Lift, with a lifting capacity of 10,000 lbs, is a highly reliable and sturdy tool designed by Ka Tools. With this lift, you can easily and safely lift vehicles for maintenance and repairs. Its robust construction and powerful lifting capabilities make it a must-have for any professional garage or workshop.
Key Features:
- 10000lbs lifting capacity
- CE Approved and Certified, it has adopted 115% dynamic loading capacity and 150% static loading capacity as tested.
- Manual safety release from two sides.
- Base plate design.
- Dual Hydraulic Chain-Drive Cylinders.
- Robber pad door opening protection.

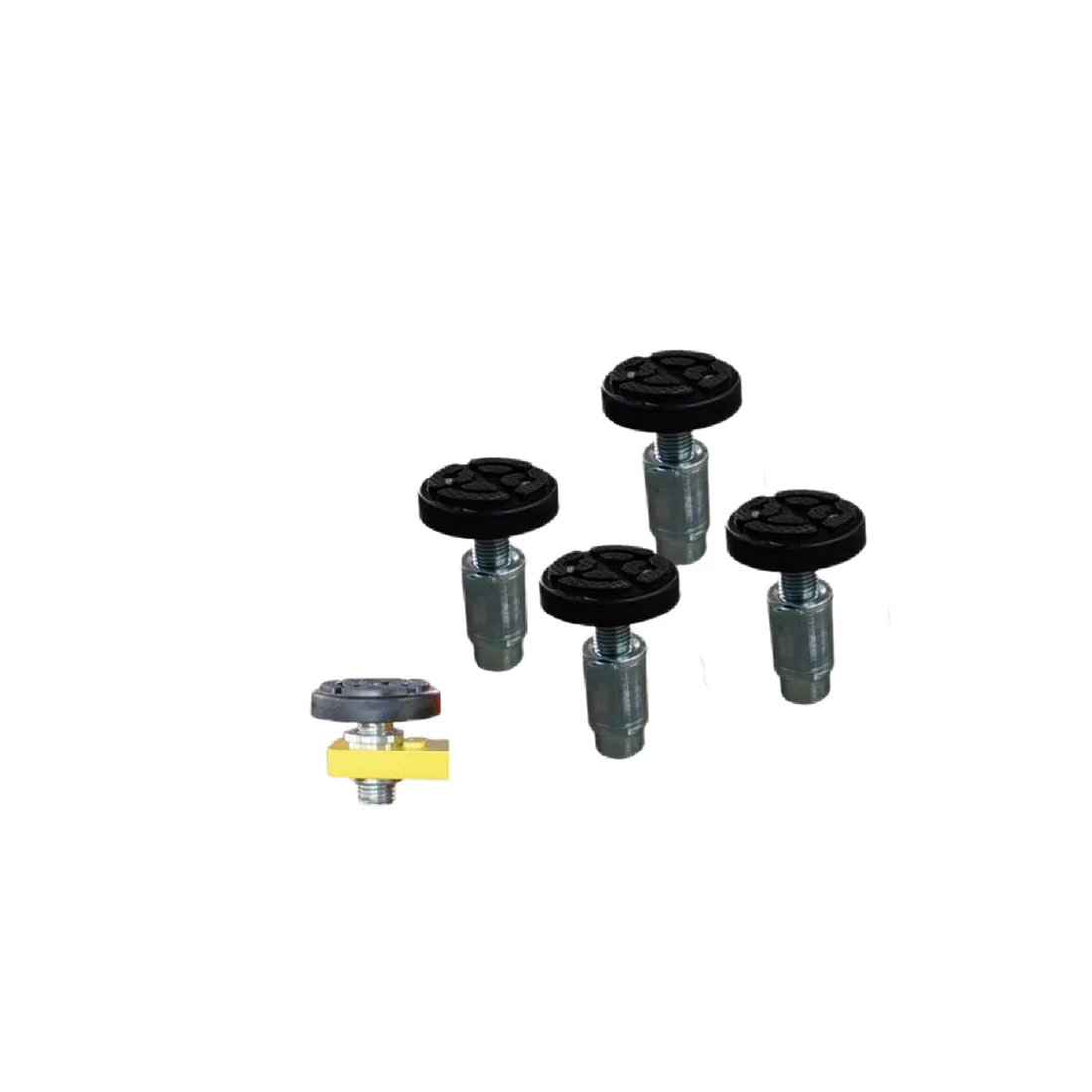

- Screw-on pad and extension support adaptor set +100mm.
- Top-level hydraulic system with 220V/60HZ/1PH.

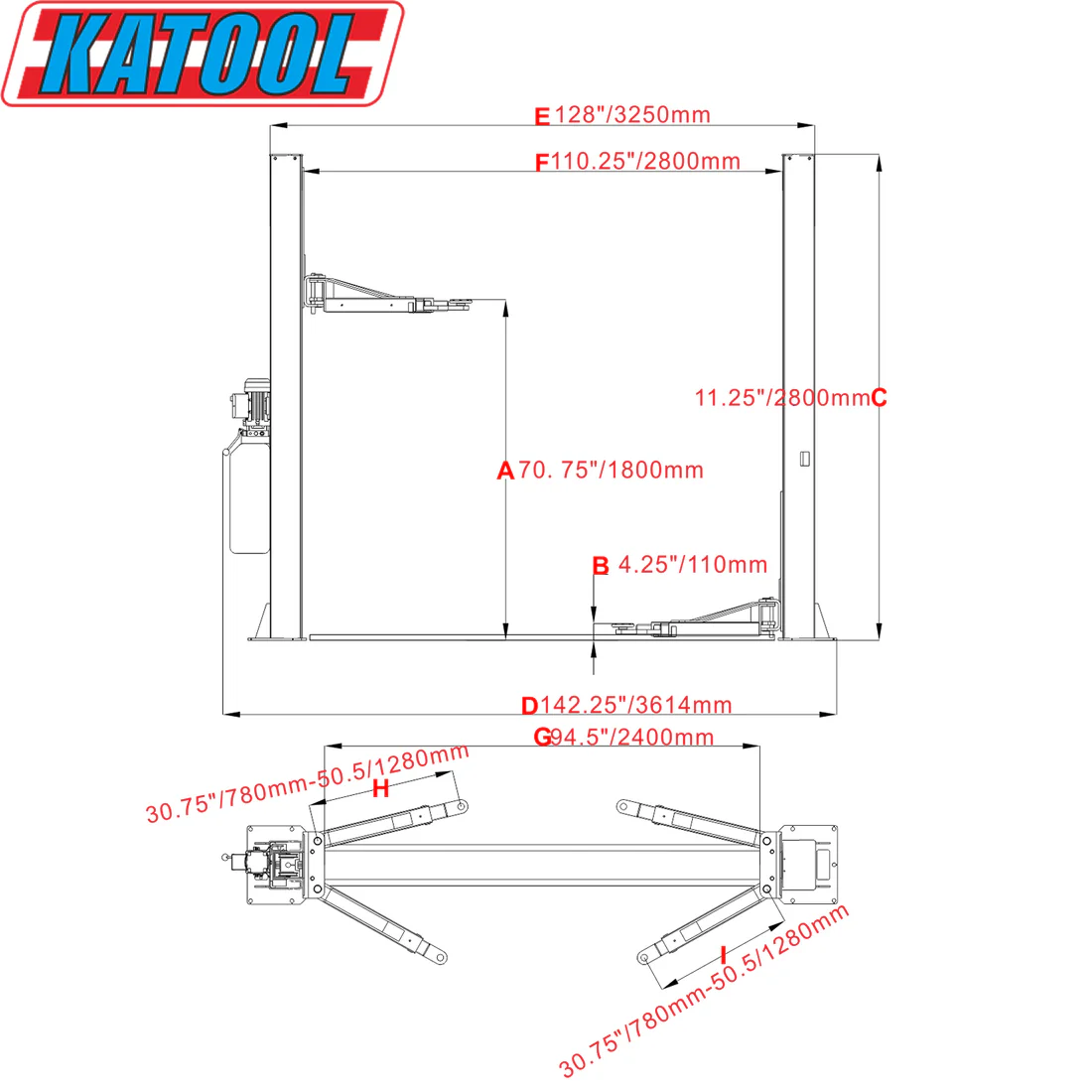

Specifications:
| Lifting Capacity | 10000lbs.(4500KG) |
| Max. Lifting Height | 70.8″/1800mm |
| Min. Height | 3.9″/100mm |
| Height Overall | 110.9″/2818mm |
| Width Overall | 140.4″/3565mm |
| Outside Column | 124.8″/3170mm |
| Inside Column | 110.2″/2800mm |
| Dirve-Thru Clearance | 98.4″/2500mm |
| Front Arm Reach (Min) | 29.5″/750mm(2 stages) |
| Front Arm Reach (Max) | 46″/1170mm(2 stages) |
| Rear Arm Reach (Min) | 35.4″/900mm(2 stages) |
| Rear Arm Reach (Max) | 58.2″/1480mm(2 stages) |
| Motor | 220VAC/60HZ/1PH/2.2KW |
| Net Weight | 570KG |
