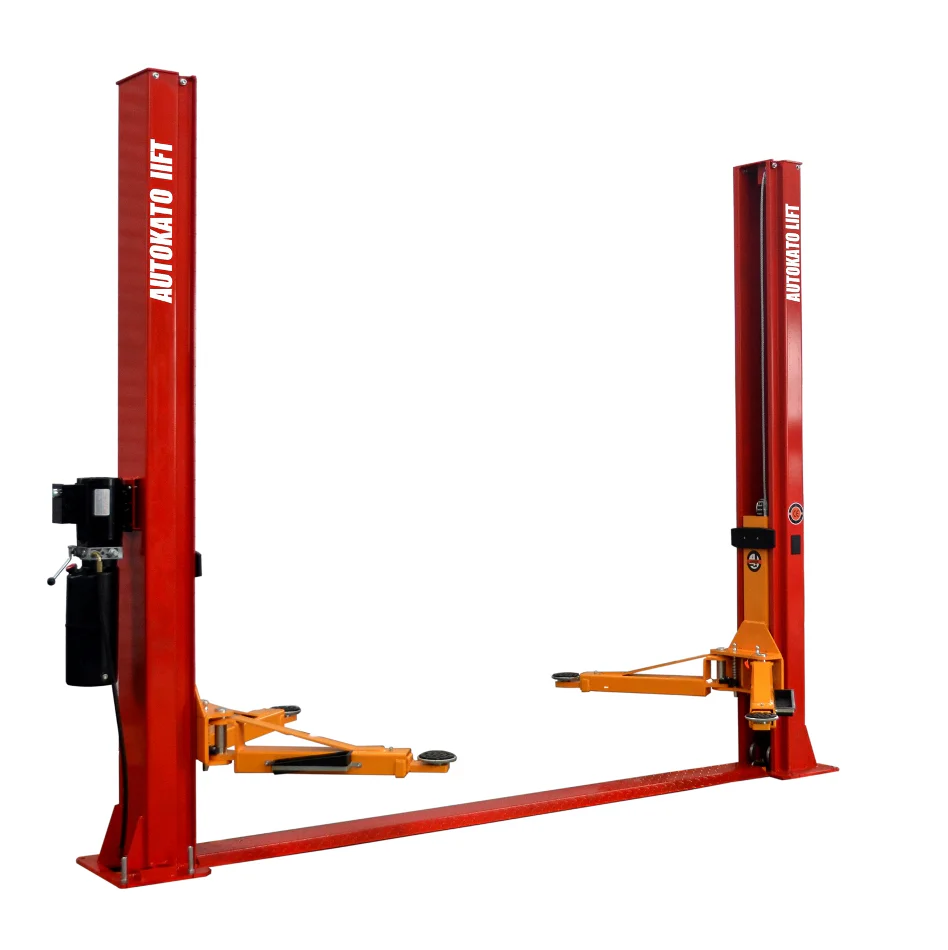

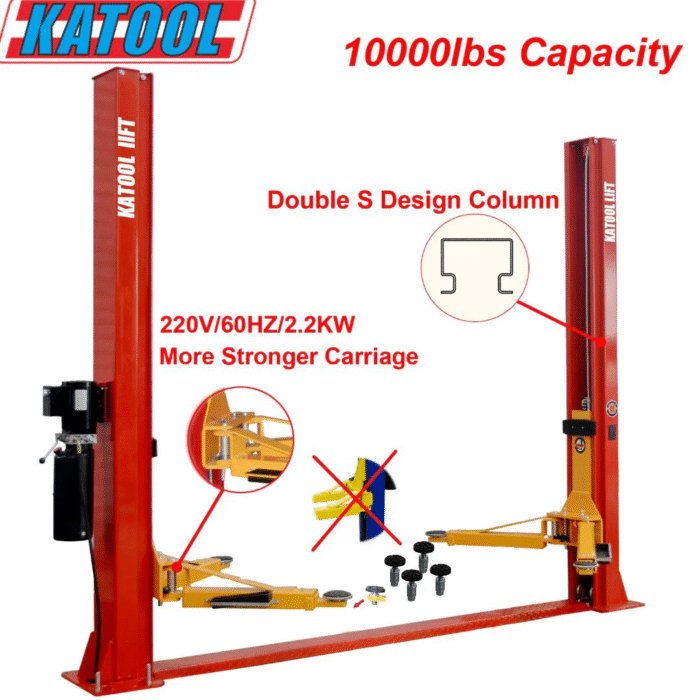

Expertly lift and elevate your vehicles with the H100 Two Post Vehicle Lift 10,000lbs by KaTool. With a weight capacity of 10,000 lbs, this lift is perfect for any car or truck. Its reliable design and sturdy construction ensure safe and efficient lifting, making it a must-have for any auto shop or garage.
Key Features:
- 10000lbs lifting capacity
- CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested.
- Manual safety release from two sides

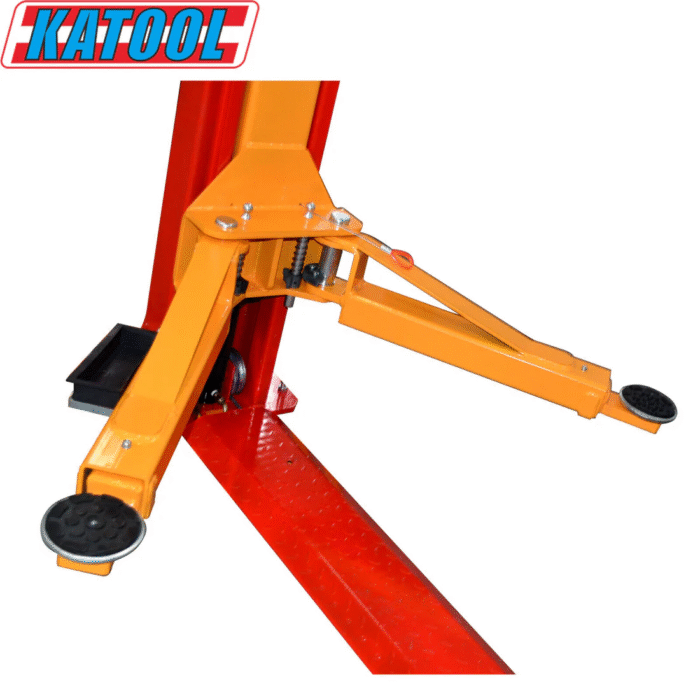

- Symmetric arm
- Base plate design
- Dual Hydraulic Chain-Drive Cylinders
- Rubber pad door opening protection
- Comes with extension support adaptor sets of +30mm and +120mm
- Feet-protection safety guardrails with toolbox
- Top-level hydraulic system with 220V/60HZ/1PH and 110V/60HZ/1PH (Optional)

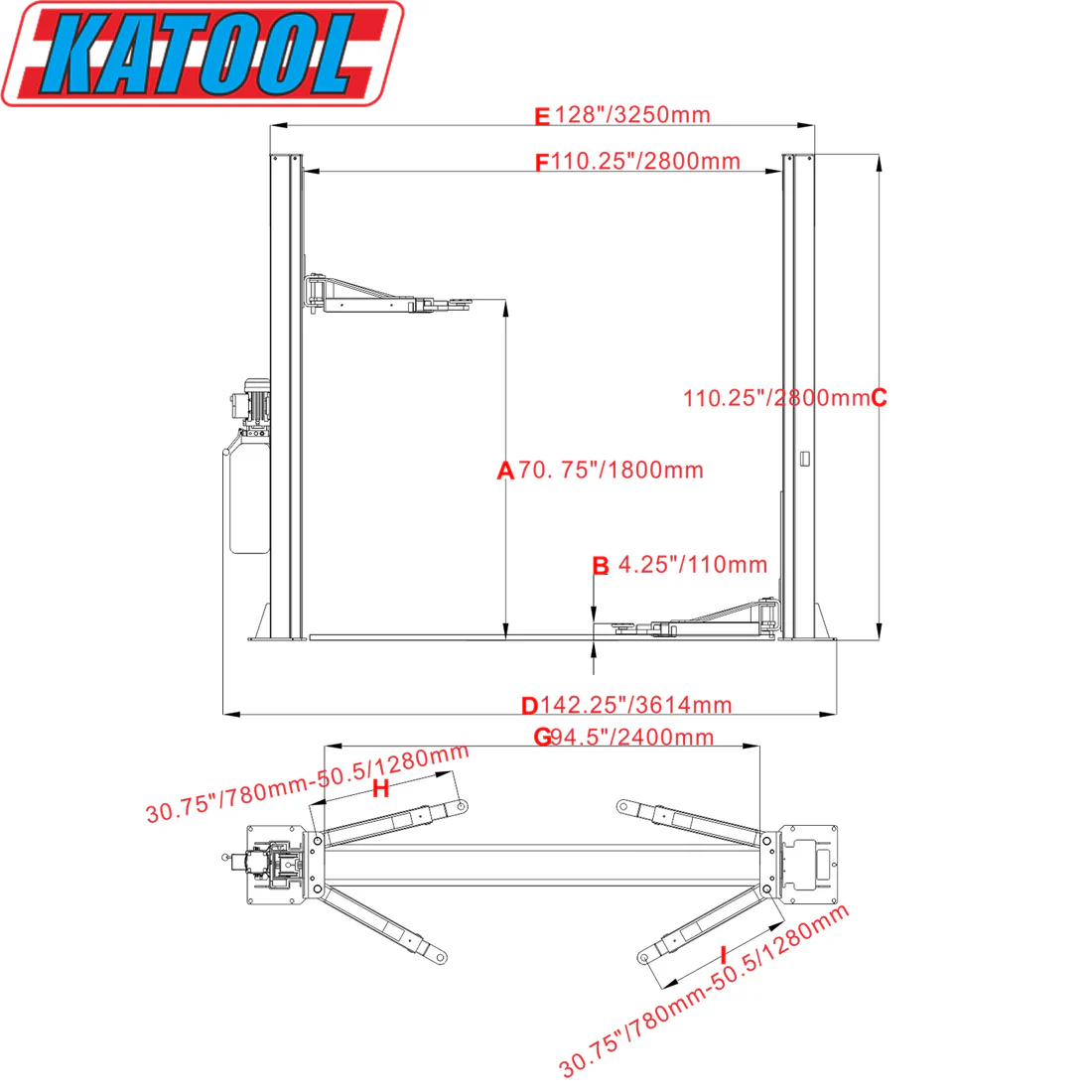

Specifications:
| Lifting Capacity | 10000lbs/4500KG |
| Max. Lifting Height | 70.75″/1800mm |
| Min. Height | 4.25″/110mm |
| Height Overall | 110.25″/2800mm |
| Width Overall | 142.25″/3614mm |
| Outside Column | 128″/3250mm |
| Inside Column | 110.25″/2800mm |
| Dirve-Thru Clearance | 94.5″/2400mm |
| Front Arm Reach (Min) | 30.75″/780mm (2 stages) |
| Front Arm Reach (Max) | 50.5″/1280mm (2 stages) |
| Rear Arm Reach (Min) | 30.75″/780mm (2 stages) |
| Rear Arm Reach (Max) | 50.5″/1280mm (2 stages) |
| Motor | 220VAC/60HZ/1PH/2.2KW |
| Net Weight |
1256lbs/570KG |
