Description

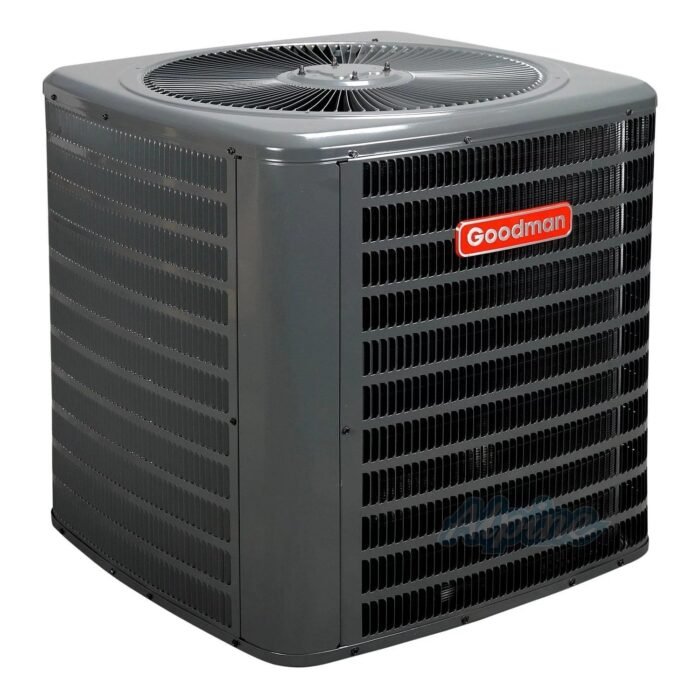

The Goodman GSX14 14 to 15 SEER Central Air Conditioner is designed for the consumer who desires superior comfort, quiet operation, and environmentally friendly cooling performance. It uses R-410A refrigerant which is chlorine-free to help prevent damage to the ozone layer. The GSX14 central air conditioner features a high-efficiency Copeland scroll compressor and features operating sound levels that are among the best in the heating and air conditioning industry.

The GSX140241 can be 14 or 15 SEER, depending on which indoor unit it is paired with. To achieve a 15 SEER system, you must match the condenser with the manufacturer-recommended evaporator coil, a TXV and a Goodman furnace, air handler, or modular blower equipped with a variable speed blower. For complete matchup information, see the Accessories tab below, consult the Specifications Sheet in the Documents section below, or call 800 865 5931 to speak to a consultant. A 15 SEER central air conditioning system will reduce your electric bill approximately 7% – 8% more than a 14 SEER system.

Some Goodman central air conditioning condensers include an orifice (also called “flow rater” or “piston”) in a small bag taped to the side of the unit. If included, use this orifice in place of the one that comes with your coil or air handler to make the two units fully compatible.

Central Air Conditioner’s Standard Features

Energy-efficient Copeland scroll compressor
Factory-installed filter drier
Copper tube/aluminum fin coil
Service valves with sweat connections and easy-access gauge ports
Contactor with lug connection
Ground lug connection
AHRI Certified
ETL Listed
Cabinet Features
- Goodman brand louvered sound control top design
- Steel louver coil guard
- Heavy-gauge galvanized-steel cabinet
- Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
- Top and side maintenance access

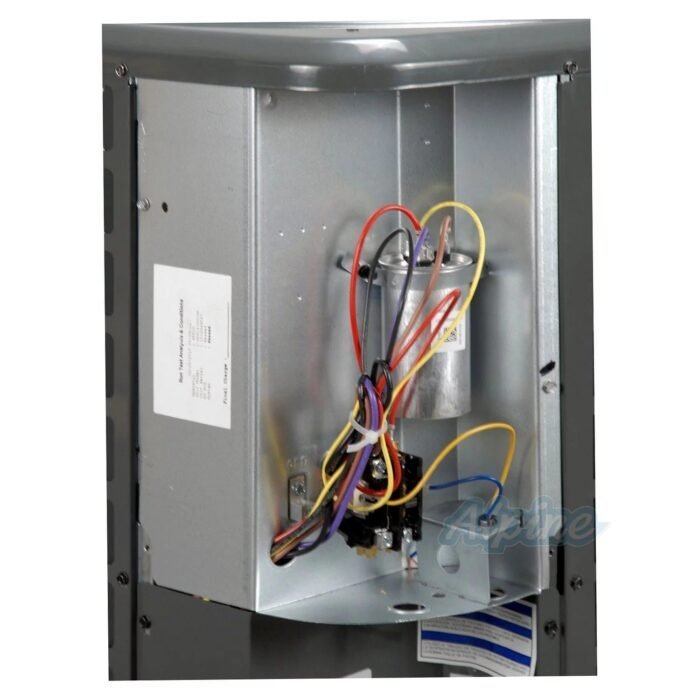

- Single-panel access to controls with space provided for field-installed accessories
- When properly anchored, meets the 2010 Florida Building Code unit integrity requirements for hurricane-type winds
- Legal Region

  No Southwest

  Total Cooling Capacity

  2 Ton(s)

  Cooling BTUs

  24000 BTU

  Cooling Tonnage

  2 Tons

  SEER

  14 SEER

  Energy Efficiency Ratio

  12.0 EER

  Refrigerant

  R-410A

  Maximum Overcurrent Protection (Breaker)

  15 Amps

  Compressor Type

  Scroll

  Stages

  Single Stage

  Low Pressure Safety Switch

  No

  Liquid Line Size

  3/8 Inches

  Suction Line Size

  3/4 Inches

  Noise Level

  71 Decibels

  Pad Size

  30×30 Inches

  Product Weight

  126 lbs

  Shipping Weight

  141 lbs

  Width

  26 Inches

  Depth

  26 Inches

  Height

  27.5 Inches

  Voltage

  208 – 230 Volts

  Frequency

  60 Hz

  Voltage Phase

  1

  Compressor Warranty

  10 Years With Online Registration

  Parts Warranty

  With Online Registration 10 Years

  Model: GOODMAN GSX140241
